Genuine Apple iMac A1419 27" 5K Logic Board i7 4.2GHz Radeon Pro 575 4GB
This one has sold
Most part numbers come back in stock. Similar parts are available now.
- Used, function-tested.
- 90-day warranty. What it covers
- Ships the next business day, with tracking.
- 30-day returns. Terms
Not sure it fits? Read the iMac 27-inch A1419 parts guide, or send us your model number and year.
90-Day Warranty
Every part is covered by our 90-day limited hardware warranty against defects in materials and workmanship. If anything goes wrong under normal use, we’ll repair, replace, or refund it.
To start a claim, email support@nextgenpcparts.com with your order number. Full details in our Terms & Conditions.
Shipping & Returns
Orders ship within 1 business day. Most parts under 2 lbs go via USPS; larger items ship FedEx or UPS. Shipping is calculated at checkout.
30-day returns. Defective, damaged or not-as-described items get a prepaid return label and a replacement or full refund. Other returns carry a 20% restocking fee. Shipping & Returns
Part details
SKU 3515-F1

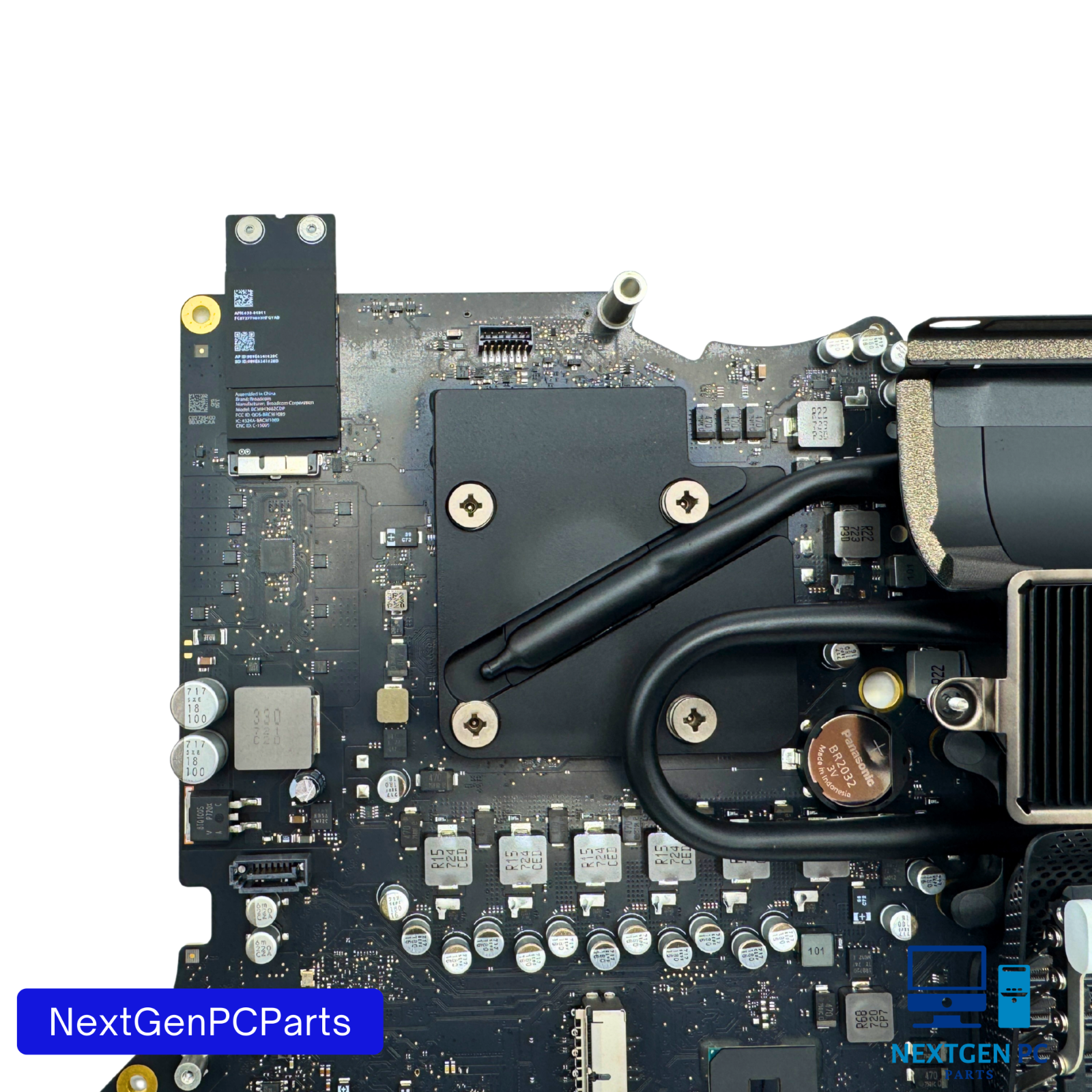

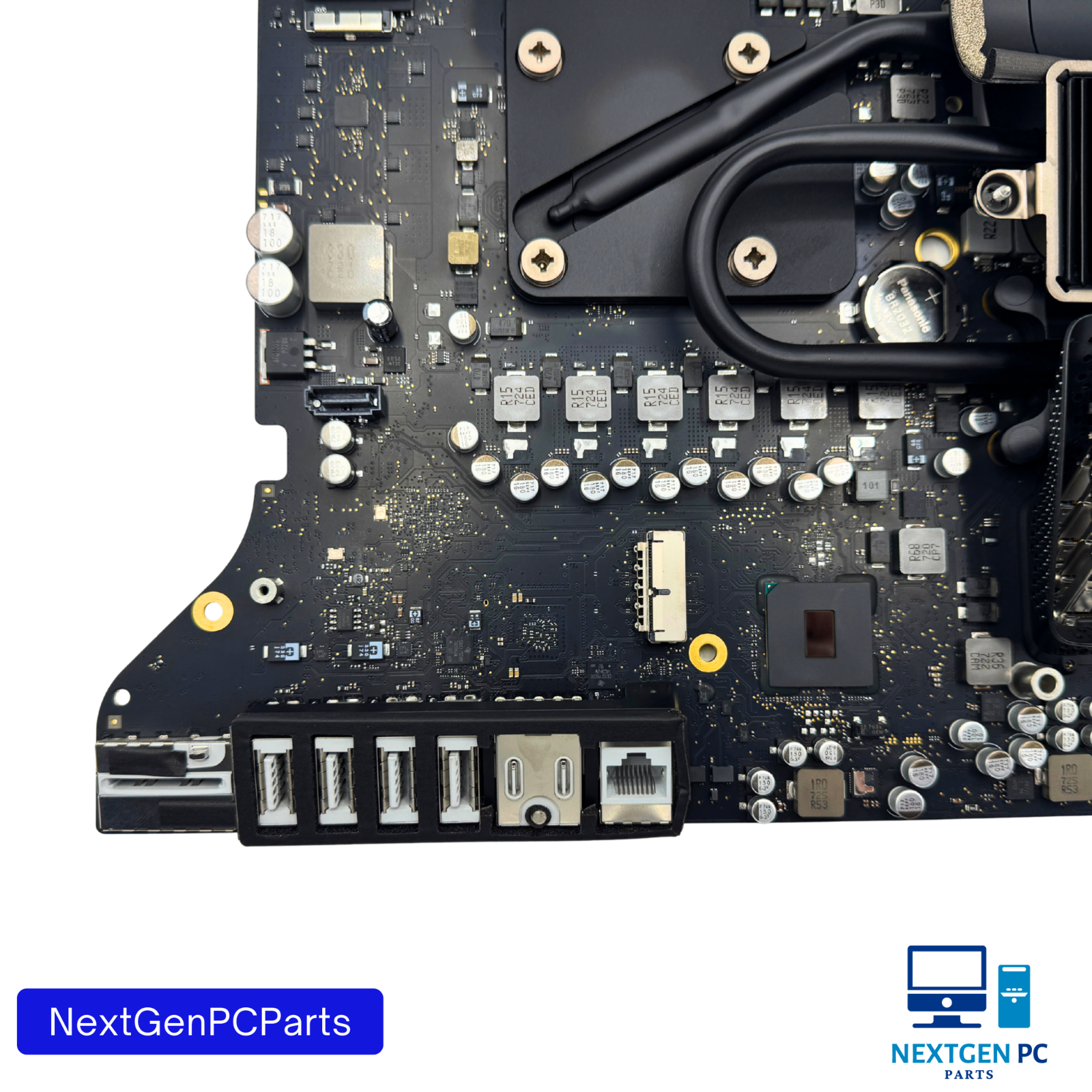

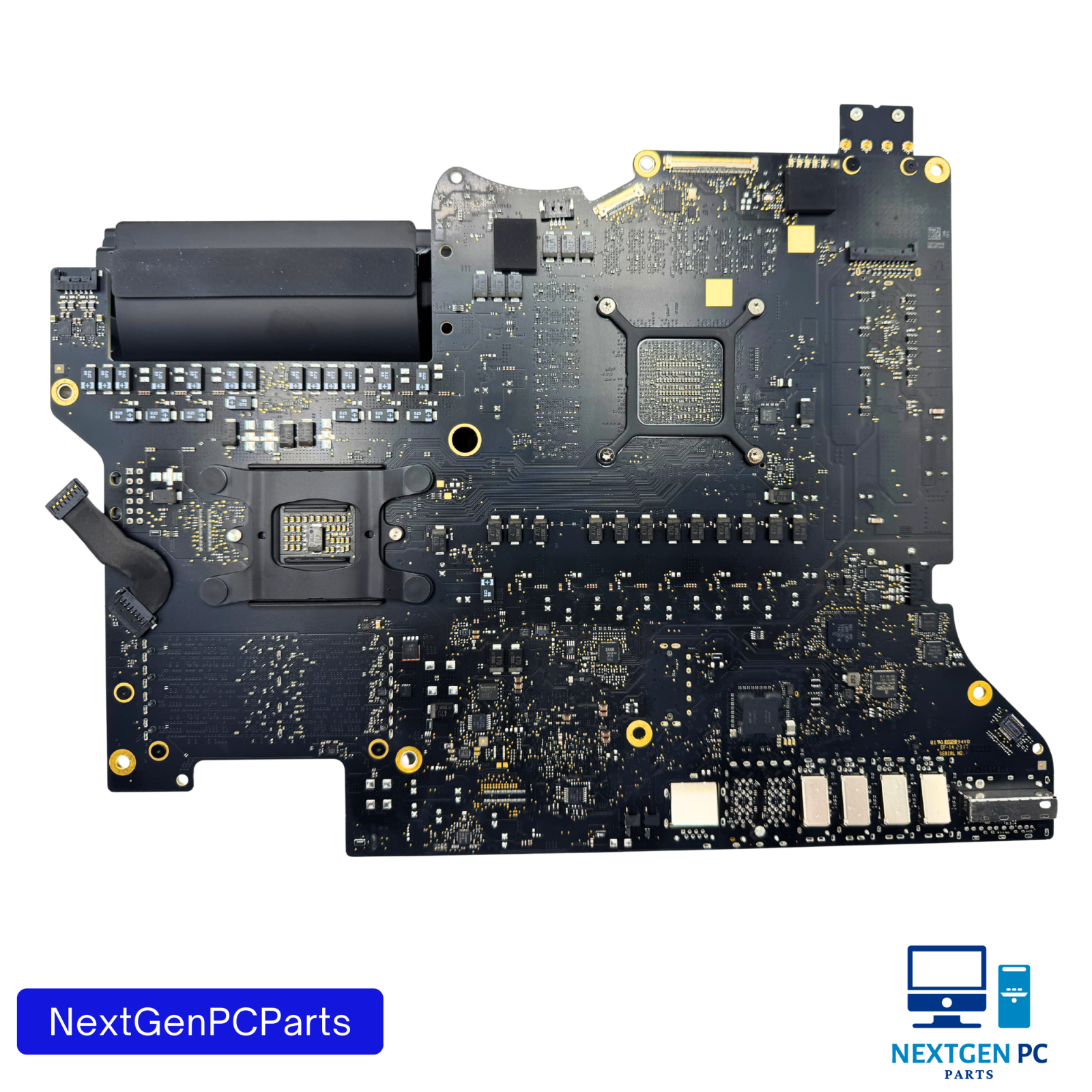

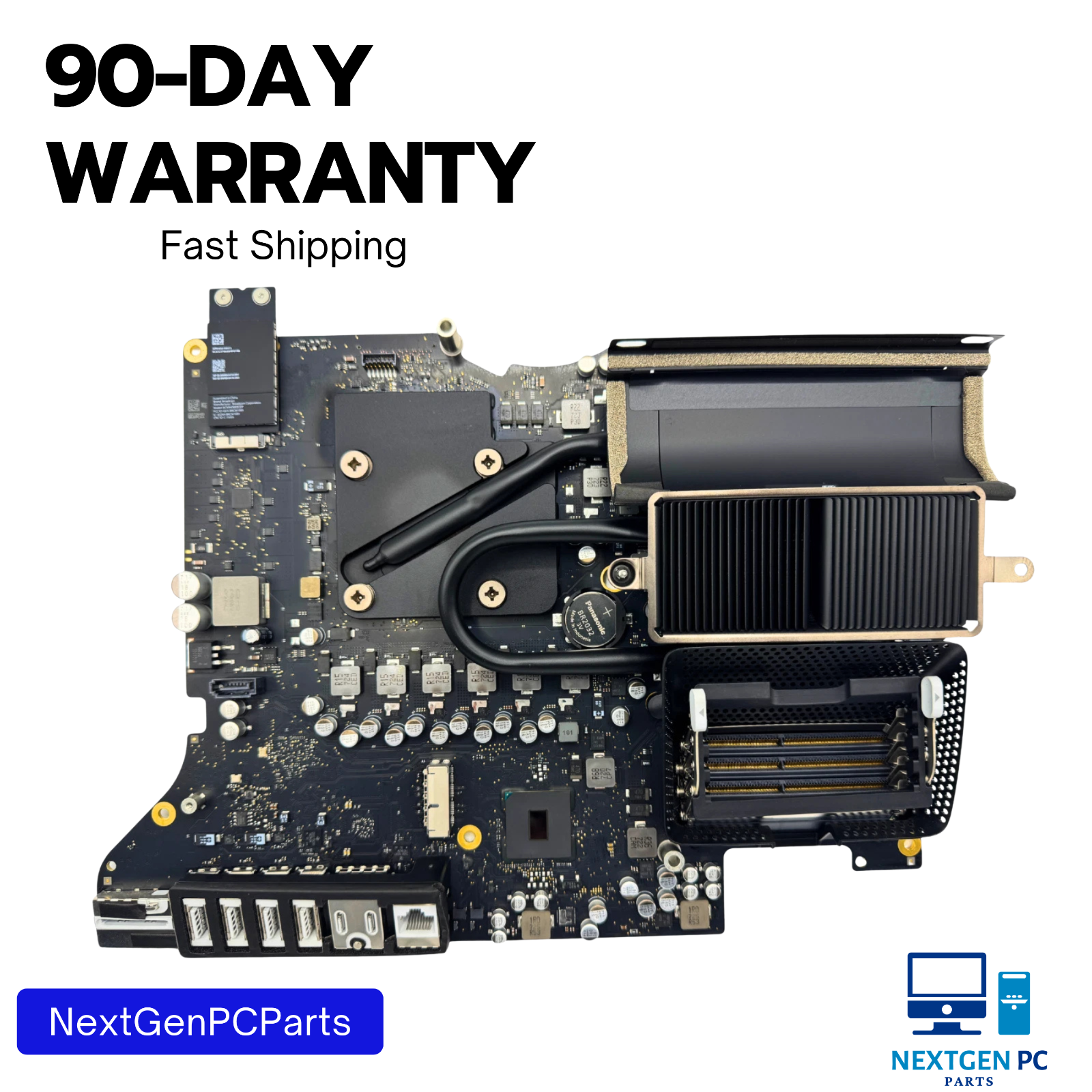

This listing is for a Genuine Apple iMac A1419 27" Retina 5K 2017 Logic Board, equipped with a high-performance Intel Core i7-7700K 4.2GHz processor and Radeon Pro 575 4GB GPU.
Board has been thoroughly tested, including:
- Display output
- USB, Thunderbolt, Ethernet, audio
- Wi-Fi/Bluetooth connectivity
- GPU stress tests
- Thermal and sensor functionality
This is a perfect OEM replacement for systems experiencing no power, graphical issues, overheating, or logic board failure.
RAM and SSD are not included unless otherwise shown.
Specifications
- BrandApple
- ModeliMac (27-inch, 5K Retina, 2017)
- Model IdentifieriMac18,3
- EMC3070

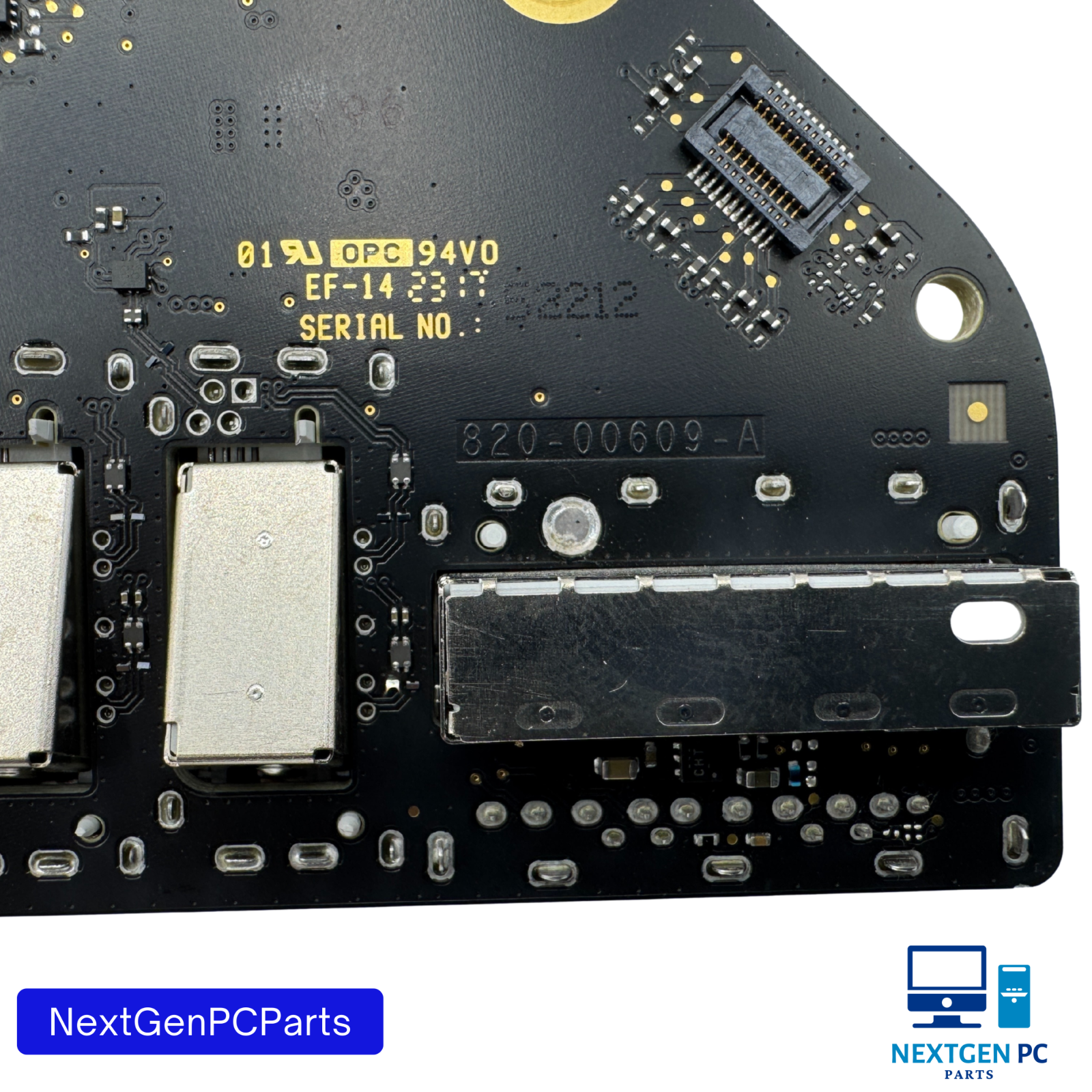

- Logic Board Number820-00609-A
- CPUIntel Core i7-7700K @ 4.2GHz (Turbo Boost up to 4.5GHz)
- Cores/Threads4 Cores / 8 Threads
- GPUAMD Radeon Pro 575 (4GB GDDR5 VRAM)
- Memory Support2400MHz DDR4, user-replaceable (up to 64GB)
- Storage SupportApple PCIe/NVMe proprietary SSD blade
- Ports
4 × USB-A 3.0
2 × Thunderbolt 3 (USB-C)
1 × Gigabit Ethernet
SDXC card slot
3.5mm audio - ConditionUsed – Fully tested and 100% working
Compatible iMac Models
- iMac (Retina 5K, 27-inch, 2017)
3.4GHz i5
3.5GHz i5
3.8GHz i5
4.2GHz i7 (this listing)
Compatible EMC: 3070
Notes
- Professional installation is recommended to avoid damage to connectors, CPU/GPU mounts, or adhesive routing.
- Works with all standard 2017 A1419 5K internal components (fans, PSU, RAM, SSD, etc.).
Notes
- No firmware lock or iCloud/MDM lock.
- Heatsink included exactly as shown.
- Board has been cleaned and inspected.
- Pulled from a fully functioning iMac during part-out.
